Place of Origin: | China |
Brand Name: | VALUES GLASS |
Certification: | Upon Request |
Model Number: | Smart Glass |
Minimum Order Quantity: | 5 pieces |
---|---|
Price: | Negotiable |
Packaging Details: | Plywood Pallet or per request |
Delivery Time: | 14 Days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 10,000 sq.meter/Month |
Glass: | Clear Glass, Ultra Clear Glass | Technique: | Lamination |
---|---|---|---|
Thickness: | 5+5mm / 6+6mm | Width: | Max 1,800 (Smart Glass) / 1,500mm (Self-Adhesive Film) |
Light Transmittance: | >=86% (ON) / <=10% (OFF) | Film Color: | Clear, Milky, Grey, Blue, Green, Red |
Haze: | <=3%; >=90% | Application: | Door, Office, Bank, Hotel, Hospital |
Highlight: | 1500mm Adhesive Smart Film,Self Adhesive Sunice Smart Film,1500mm Smart Tint Film |
Self-Adhesive PDLC Switchable Smart Glass For Window Shower Room Privacy
Switchable Smart glass, or privacy glass, is glass that uses advanced technologies to block light and insulate. The glass’s light transmission properties can be affected by light, heat or electricity. Mostly, this means the glass changes from translucent to transparent, blocking some, all or certain wavelengths of light. This technology can be applied to control light, heat, and privacy in homes, businesses and institutions such as hospitals. They provide cleaner environments and offer higher and differentiated levels of control than manual solutions such as blinds, curtains, shades and doors.
Product Description of Switchable Smart Glass:
Parameters | Model | Value | |
Optical Parameters | Visible Light Transmittance | Power ON | >85% |
Power OFF | >55% | ||
Parellel light | Power ON | >66% | |
Power OFF | <1.5% | ||
Haze | Power ON | <4% | |
Power OFF | >90% | ||
Viewing angle | Power ON | >140° | |
Electricity Parameters | Operating voltage | Power ON | 60V AC |
Threshold voltage | Power ON | <36V | |
Response Time | OFF -> ON | <200ms | |
ON -> OFF | <10ms | ||
Power Consumption | Power ON | <5W/M² | |
Physical Parameters | Thickness | 11 (5+5mm glass) / 13 (6+6mm glass)mm | |
Max Width | 1.8 Meters | ||
Enviorment Parameters | Working Temperature | —20°C — 70°C | |
Storage Temperature | —20°C —80°C | ||
Life Time | >10 years | ||
Times of ON/OFF | >100,000 times |
Function of Switchable Smart Glass:
1.Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF.
2. Sound proof: Smart Glass can insulate the noise and keep our room quiet.
3. Safety: Smart glass is a kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
4. Blocks more than 99% UV rays ,avoiding fading in the room.

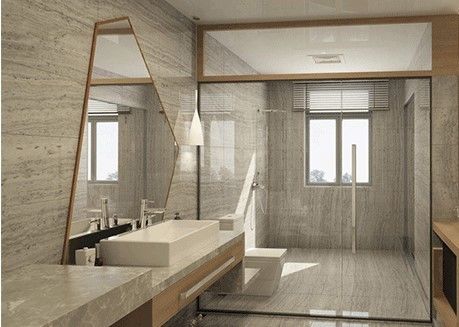

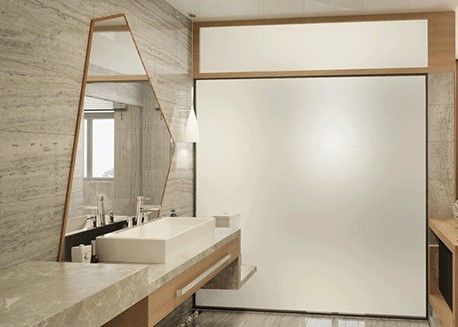

Application of Switchable Smart Glass:
Our advantage:
Standard export package: Plywood or wooden crate
Corner protector and protective film is available
Crates shall be banded by steel bands
FAQ:
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product documents;
-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;
-- If urgent case, we will call customers to immediately discuss and solve.
