| Place of Origin: | China |
| Brand Name: | VALUES GLASS |
| Certification: | Upon Request |
| Model Number: | Smart Glass |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Pallet or per request |
| Delivery Time: | 14 Days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10,000 sq.meter/Month |
| Product: | Switchable Smart Glass | Type: | Clear Glass; Laminated Glass |
|---|---|---|---|
| Structure: | Solid | Shape: | Flat, Curved |
| Thickness: | 5+5mm / 6+6mm Or Etc... | Size: | Customized |
| Application: | Door, Office, Bank, Hotel, Hospital | Color: | Clear, Milky, Grey, Blue, Green, Red |
| Highlight: | Curved Switchable Smart Glass,AC48V Lcd Switchable Glass,AC48V Switchable Blackout Glass |
||

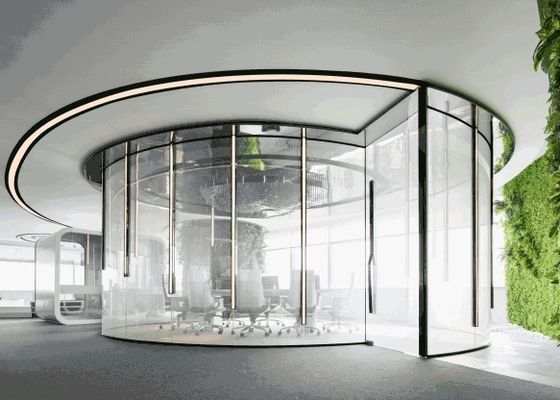

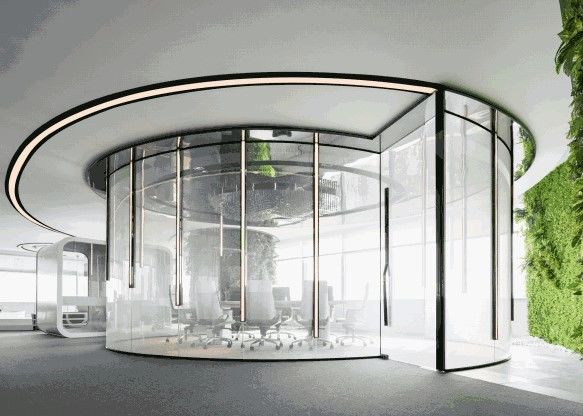

Curved Shape Switchable Smart Glass for Office / Meeting Room with PDLC Smart Film
Description of Switchable Smart Glass:
Laminated Switchable Smart Glass Used for Privacy Protection. It is a glass that uses advanced technologies to block light and insulate. Smart glass is based on PDLC (Polymer Dispersed Liquid Crystal) technology, which is composed of liquid crystal film in the middle of two-layer glass and synthesized by high temperature and high pressure. This technology can be applied to control light, heat, and privacy in homes, businesses and institutions such as hospitals. They provide cleaner environments and offer higher and differentiated levels of control than manual solutions such as blinds, curtains, shades and doors.
Application of Switchable Smart Glass:
Features of Switchable Smart Glass:
(1) Privacy partition: The biggest function of smart glass is the privacy protection function, which can control the transparent and opaque state of the glass at any time, and have a strong spatial extension effect, privacy, openness, and freedom.
(2) Sound insulation and noise reduction: The smart film in the middle of the glass has a blocking effect on noise, and the anti-noise ability is increased by more than 20% compared with ordinary glass.
(3) Touch projection: Smart glass is still this very excellent projection hard screen. In a suitable light environment, if you choose a high-lumen projector, the projection imaging effect is very clear and outstanding. (Recommended to use rear projection imaging method)
(4) Heat insulation and sun protection: The smart film in the middle of the dimming glass can insulate and block more than 99% of ultraviolet rays and 98% of infrared rays. Shield some infrared rays to reduce heat radiation and transmission. And shielding ultraviolet rays can protect indoor furnishings from fading and aging due to ultraviolet radiation, and protect personnel from diseases caused by direct ultraviolet rays.
(5) Safety and explosion-proof: The middle-layer smart film can tightly absorb glass fragments when the glass is hit by high intensity, effectively preventing glass splashing and hurting people.
Parameter of Switchable Smart Glass:
| Power ON | Power OFF | ||||
| Light transmittance: | Parellel light: | >=66% | <=1.5% | ||
| Visible light: | Common Film | >=83% | >=55% | ||
| High Transmittance Film | >=88% | >=57% | |||
| Haze: | <=3% | >=90% | |||
| Response time: | <10ms | <200ms | |||
| Viewing angle: | >=150° | ||||
| Voltage: | Input: | AC220V, AC110V, DC24V, DC12V | |||
| Operating voltage: | AC48V | ||||
| Threshold voltage: | <=20V | ||||
| Frequency: | Operating frequency: | 30~400Hz | |||
| Optimum operating frequency: | 50Hz | ||||
| Power consumption: | <=5W/m2 | ||||
| Continued opening time: | >80,000h | ||||
| Continued ON and OFF times: | >80,000,000 | ||||
| Insulation Resistance: | >2M Ω | ||||
| Operating temperature: | Between -10℃ and 65 ℃. | ||||
| Storage temperature: | Between -20℃ and 80 ℃. | ||||
| Thickness: | 0.65mm | ||||
| Max dimension: | Individual piece | <=1.5 * 3.2 meters | |||
| Roll | 0.93/1.2/1.5(W) x 20/30/50M(L) | ||||
| Adhesion for silicon glue & glass: | 20g/mm | ||||
| Adhesion for PDLC film: | 50g/mm |
||||
Why Choose Us:
Main products ranges:
-- Tempered glass;
-- Insulated glass;
-- Laminated glass;
-- Smart glass & self-adhesive PDLC film;
-- Non-reflective glass panels, anti-glare glass panels;
-- Vacuum glass;
-- Stained / fused glass;
-- LED glass, LED mirror;
About Us:
VALUES GLASS, a continuous growing company, located in Shanghai, China.
Since year of 2005, we stepped on furnish glasses;
Since year of 2010, our ranges are expanded to building glasses;
Since year of 2014, VALUES GLASS in Shanghai is established to meet business growth;
VALUES GLASS, aim to deliver ADDED VALUE for partners by:
-- Competitive price;
-- Quality products;
-- On time delivery;
-- Efficient communication;
VALUES GLASS, contribute to partners’ success with our expertise & knowhow!
Packaging & Delivery:
Standard export package: Plywood or wooden crate
Corner protector and protective film is available
Crates shall be banded by steel bands
Contact Person: Mr. Mark Yang
Tel: +86 182 0190 6259
Fax: SHANGHAI VALUES GLASS CO., LTD
