| Place of Origin: | China |
| Brand Name: | VALUES GLASS |
| Certification: | Upon Request |
| Model Number: | Smart Glass |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Pallet or per request |
| Delivery Time: | 14 Days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10,000 sq.meter/Month |
| Glass: | Clear Glass, Ultra Clear Glass | Thickness: | 5+5mm / 6+6mm |
|---|---|---|---|
| Width: | Max 1,800 (Smart Glass) / 1,500mm (Self-Adhesive Film) | Film Application: | To Be Laminated / Self-adhesive Film |
| Film Color: | Clear, Milky, Grey, Blue, Green, Red | Light Transmittance: | >=86% (ON) / <=10% (OFF) |
| Highlight: | Switchable Smart Glass Sliding Door,Electronic PDLC Switchable Smart Glass,Privacy Glass Sliding Door |
||
Electronic PDLC Switchable Smart Glass For Privacy Glass Sliding Door
Switchable smart glass provides a very broad range of the use for architects, designers, offices and interiors. Our switchable glass ensures an immediate reaction when switching between clear (transparent) and mat (non-transparent) surface. The film is laminated between two safety glasses to reach maximum protection against dust, wet and mechanic damage.
Product Description:
|
Product Name |
Fast Response Switchable Privacy Glass PDLC Film Long Life With High Security |
|
Raw Material Glass |
Clear Glass, Ultra Clear Glass |
|
Thickness |
5+5mm / 6+6mm |
|
Color |
Clear, Milky, Grey, Blue, Green, Red, Black |
|
Common Width |
Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters) Self-Adhesive -- 1.0, 1.2, 1.5meters (Max 1.5meters) |
|
PDLC Film Length |
30meters/roll or per request |
|
Light Transmittance |
Clear Glass: >= 82% (ON) / <=8% (OFF) Ultra Clear Glass: >= 86% (ON) / <=10% (OFF) |
|
Response Time |
From OFF to ON: <=50ms From ON to OFF: <=200ms |
|
Power consumption |
5W/sq.meter |
|
Operating Temperature |
-20 ℃ and 70 ℃ |
|
Life Time |
>=50,000hours |
|
Transformer |
AC 60V (Suggest to use nominated transformer) |
|
Silicon Glue |
Neutral (Suggest to use nominated silicon glue to prevent glass corrison) |

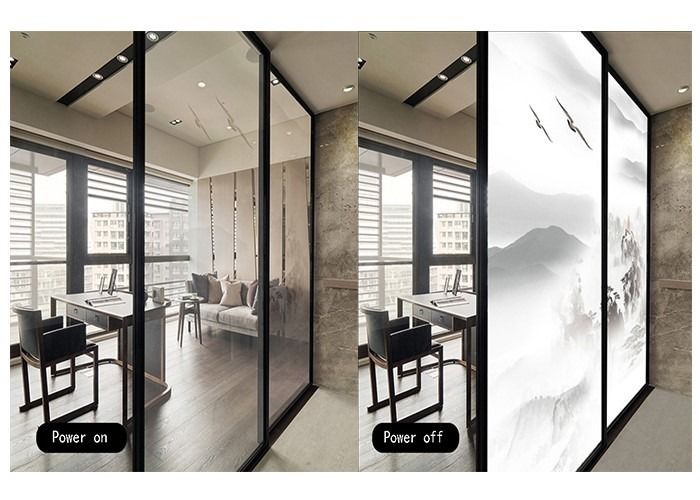

Switchable Privacy Glass Function:
1.Privacy protection. As most important function, smart glass can be changed from
2.transparent to opaque via easy model ON & OFF.
3.Perfect function of safety. As smart glass is a special kind of laminated glass, it has
4.all the good function of the laminated glass, mainly the security.
5.Blocks more than 99% UV rays ,avoiding fading in the room.
6.Sound proof.
Theory of Smart Glass:
