| Place of Origin: | China |
| Brand Name: | VALUES GLASS |
| Certification: | Upon Request |
| Model Number: | Smart Glass |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Pallet or per request |
| Delivery Time: | 14 Days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10,000 sq.meter/Month |
| Name: | Switchable Smart Glass | Thickness: | 5+5mm / 6+6mm |
|---|---|---|---|
| Color: | Clear, Milky, Grey, Blue, Green, Red, Black | Common Width: | 1.0, 1.2, 1.5, 1.8meters |
| PDLC Film Length: | 30 Or 50 Meters | Power Consumption: | 5W/sq.meter |
| Highlight: | switchable privacy glass,pdlc switchable glass |
||
Fast Response Switchable Smart Glass PDLC Film Long Life With High Security
Switchable Smart Glass Description

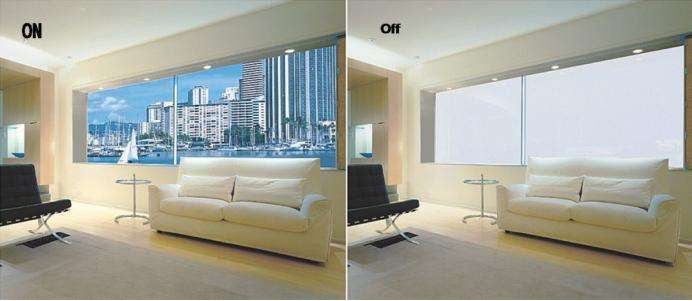

Switchable Smart Glass is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and two layers of conductive interlayers. The PDLC film is what allows you to change the visual appearance of the glass from opaque to clear on command.
Switchable Smart Glass Description:
| Product Name | Fast Response Switchable Smart Glass PDLC Film Long Life With High Security |
| Raw Material Glass | Clear Glass, Ultra Clear Glass |
| Thickness | 5+5mm / 6+6mm |
| Color | Clear, Milky, Grey, Blue, Green, Red, Black |
| Common Width |
Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters) Self-Adhesive PDLC Film-- 1.0, 1.2, 1.5meters (Max 1.5meters) |
| PDLC Film Length | 30 or 50 meters/roll or per request |
| Light Transmittance |
Clear Glass: >= 82% (ON) / <=8% (OFF) Ultra Clear Glass: >= 86% (ON) / <=10% (OFF) |
| Power consumption | 5W/sq.meter |
| Operating Temperature | -20 ℃ and 70 ℃ |
| Life Time | >=50,000hours |
| Transformer | AC 60V (Suggest to use nominated transformer) |
| Silicon Glue | Neutral (Suggest to use nominated silicon glue to prevent glass corrison) |
Product Function
1) Privacy Protection :
The biggest function of Our pdlc film is privacy protection,which can control the glass between transparent and opaque.It can protect your privacy by our smart film
2) Projection Screem:
Our Pdlc film can be used as a good projection screen, in appropriate light environment, if choose high lumen projector, the image of projection effect is very clear(suggest use rear projection mode).
3) Safety Protection
Our pdlc film thickness is about 0.36mm. When installed on your glass window,It can adhensive your window closely, When the window are broken, The film can avoid the window glass flying around and hurt others,
4) Environmental Protection:
Our PDLC film attached on the surface of glass,Which can resist heat over 98% UV and over 95% infrared ray. In order to reduce thermal radiation, it requires shielding partial infrared ray. While if shielding UV can protect indoor furnishings not fade, aging and so on, and protect people against the disease by ultraviolet radiation.
