| Place of Origin: | China |
| Brand Name: | VALUES GLASS |
| Certification: | Upon Request |
| Model Number: | Smart Glass |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Pallet or per request |
| Delivery Time: | 14 Days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10,000 sq.meter/Month |
| Glass: | Clear Glass, Ultra Clear Glass | Thickness: | 5+5mm / 6+6mm |
|---|---|---|---|
| Width: | Max 1,800 (Smart Glass) / 1,500mm (Self-Adhesive Film) | Film Application: | To Be Laminated / Self-adhesive Film |
| Film Color: | Clear, Milky, Grey, Blue, Green, Red | Light Transmittance: | >=86% (ON) / <=10% (OFF) |
| Highlight: | switchable privacy glass,privacy glass panels |
||
PDLC Residential Smart Glass , Electric Glass Switchable Privacy Glass
Product Description:
| Product Name |
PDLC Residential Smart Glass , Electric Glass Switchable Privacy Glass |
| Raw Material Glass | Clear Glass, Ultra Clear Glass |
| Thickness | 5+5mm / 6+6mm |
| Color | Clear, Milky, Grey, Blue, Green, Red, Black |
| Common Width |
Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters) Self-Adhesive -- 1.0, 1.2, 1.5meters (Max 1.5meters) |
| PDLC Film Length | 30meters/roll or per request |
| Light Transmittance |

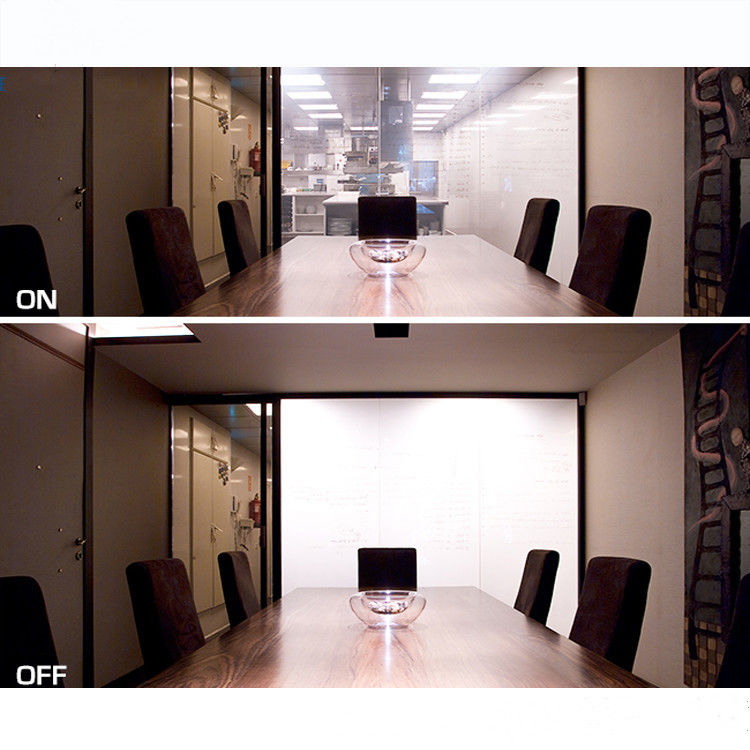

Clear Glass: >= 82% (ON) / <=8% (OFF) Ultra Clear Glass: >= 86% (ON) / <=10% (OFF) |
| Response Time |
From OFF to ON: <=50ms From ON to OFF: <=200ms |
| Power consumption | 5W/sq.meter |
| Operating Temperature | -20 ℃ and 70 ℃ |
| Life Time | >=50,000hours |
| Transformer | AC 60V (Suggest to use nominated transformer) |
| Silicon Glue | Neutral (Suggest to use nominated silicon glue to prevent glass corrison) |
Applications:
