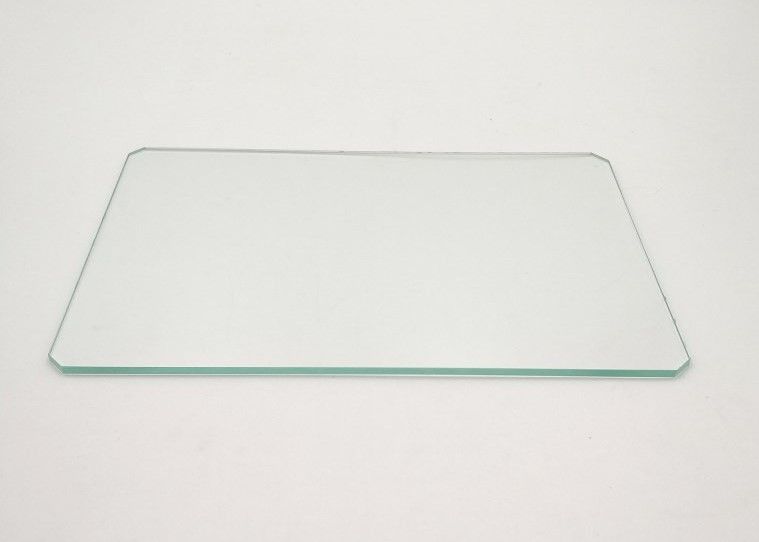

Diffused Surface ATM Screens 6mm Non Reflective Picture Glass

Diffused Surface ATM Screens 6mm Non Reflective Picture Glass

  • Diffused Surface ATM Screens 6mm Non Reflective Picture Glass
  • Diffused Surface ATM Screens 6mm Non Reflective Picture Glass
  • Diffused Surface ATM Screens 6mm Non Reflective Picture Glass
  • Diffused Surface ATM Screens 6mm Non Reflective Picture Glass
Diffused Surface ATM Screens 6mm Non Reflective Picture Glass
Product Details:
Place of Origin: China
Brand Name: VALUES GLASS
Certification: UponRequest
Model Number: AG Glass
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotiable
Packaging Details: Plywood Pallet or per request
Delivery Time: 14 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5,000 sq.meter/Month
Contact Now
Detailed Product Description
Gloss: 35 - 130 Haze: 4% ~ 17%
Function: Acid Etched Glass Roughness: 3~40
Transmittance: >89% Shape: Flat, Curved
Advantage: Low Reflection Edge: Straight, Round, Beveled, Polished
Highlight:

6mm non reflective picture glass

,

6mm non glare glass for pictures

,

ATM non reflective picture glass

6mm Clear Acid Etched Anti Glare Glass For Advertising Screens



Application Anti-Glare Glass:

1. Electronic display, Liquid crystal display

2. Educational machines

3. Digital billboards

4. High-end flashlight

5. Picture frame, picture glazing

6. Projection lamp,probe light,landscape lights,street lamps, miners lights

7. Building:window,showcase,fish tank,refrigerator panel

8. Fax machine;copy version



Anti-glare glass: By chemical etching or spraying, the reflective surface of the original glass is changed to a diffused surface, which changes the roughness of the surface of the glass, thereby producing a matte effect on the surface. When the outside light is reflected , it will form a diffuse reflection, which will reduce the reflection of light, and achieve the purpose of not glare, so that the viewer can experience better sensory vision.

Simple identification method: Place a piece of glass under the fluorescent light and observe the tube from the front of the glass. If the light source of the lamp is dispersed, it is the AG treatment surface, and if the light source of the lamp is clearly visible, it is a non-AG surface.



Product Name 2mm 3mm 4mm Anti Glare Glass AG Glass Diffuse Reflection Glass
Raw Material Clear Glass, Low Iron Glass
Thickness 0.7 ~ 6.0mm
Thickness tolerance ±0.2mm
Max dimension 1,270 * 914mm
Min dimension 50 * 50mm
Gloss 35 ~ 110
Haze 4% ~ 17%
Transmissivity 89%
Application Touch Panel, Tablet, Military & Avionic, Picture Frame, ATM, Kiosk, Vehicle Display, TV Monitor



Features of Anti-Glare Glass:

1. Acid etching, never peel off 

2. Perfect anti-glare function,reduce sparkle effectively. 

3. Even surface roughness, good touch, high anti-fingerprint performance

4. Low reflection, high resolution, superior durability and anti-newton ring

5. “Low-Sparkle” grade available for aviation display, military and other high tech display

6. Can be heat tempered, laminated or chemical strengthened

7. Does not become highly reflective as a result of oily fingerprints like anti-reflective coated glass or untreated surfaces

8. For quality assurance, gloss values measured by Gloss-meter

9. Available from 35 gloss to 130 gloss units



Most people have experience of suffering dazzle, which comes from dazzle lamp house and reflectance of dazzle. When we work before monitor, sometimes, it is hard to read the content on the monitor due to reflectance of surroundings on the surface of monitor. The reason is on the reflectance of light on the glass surface. While clear glass has very high reflectance, To minimize the influence of light reflectance, we do treatment on the surface to achieve non-reflectance or to reduce the reflectance.


Anti-glare glass can lower the influence of surrounding light, improve the visible range and light level of monitor, and reduce the reflectance. In this way, the images become clearer, more colorful, and the best saturation.





Diffused Surface ATM Screens 6mm Non Reflective Picture Glass 0

Diffused Surface ATM Screens 6mm Non Reflective Picture Glass 1



Ours Products:



-- Tempered glass, heat strengthened glass, heat soaked glass;

-- Smart glass ( or privacy glass, switchable glass ), self-adhesive PDLC film;

-- LOW E glass, laminated glass, insulated glass, vacuum glass;

-- Anti-reflection glass, Anti Glare Glass;

-- Decorative Glass;

-- Silver mirror, copper free mirror, LED mirror



Packaging&Delivery:

1 Standard export package: Plywood or wooden crate
2 Corner protector and protective film is available
3 Crates shall be banded by steel bands
4 Delivery Time: About 1-3weeks after the payment

Diffused Surface ATM Screens 6mm Non Reflective Picture Glass 2

Diffused Surface ATM Screens 6mm Non Reflective Picture Glass 3

FAQ:

Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.



Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.



Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.



Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.


Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.


Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;

-- If urgent case, we will call customers to immediately discuss and solve.
